Description

Technical Parameters

15050 fan all ball bearing and long lifespan,high air flow and low noise.

Noise testing standard:

product-980-245

Description:

In the background noise below 17dB (A) noise indoors, vertical rope fastened to the four corners of the fan, put the microphone 1Meter away from the fan center where air flow input.

General specification

Bearing type:double ball bearing

Material:Impeller-plastic;Frame-Aluminum Alloy

Lead wire:UL type

Operation temperature:-10℃～65℃,35～85%RH

Storage temperature:-40℃～70℃,35～85%RH

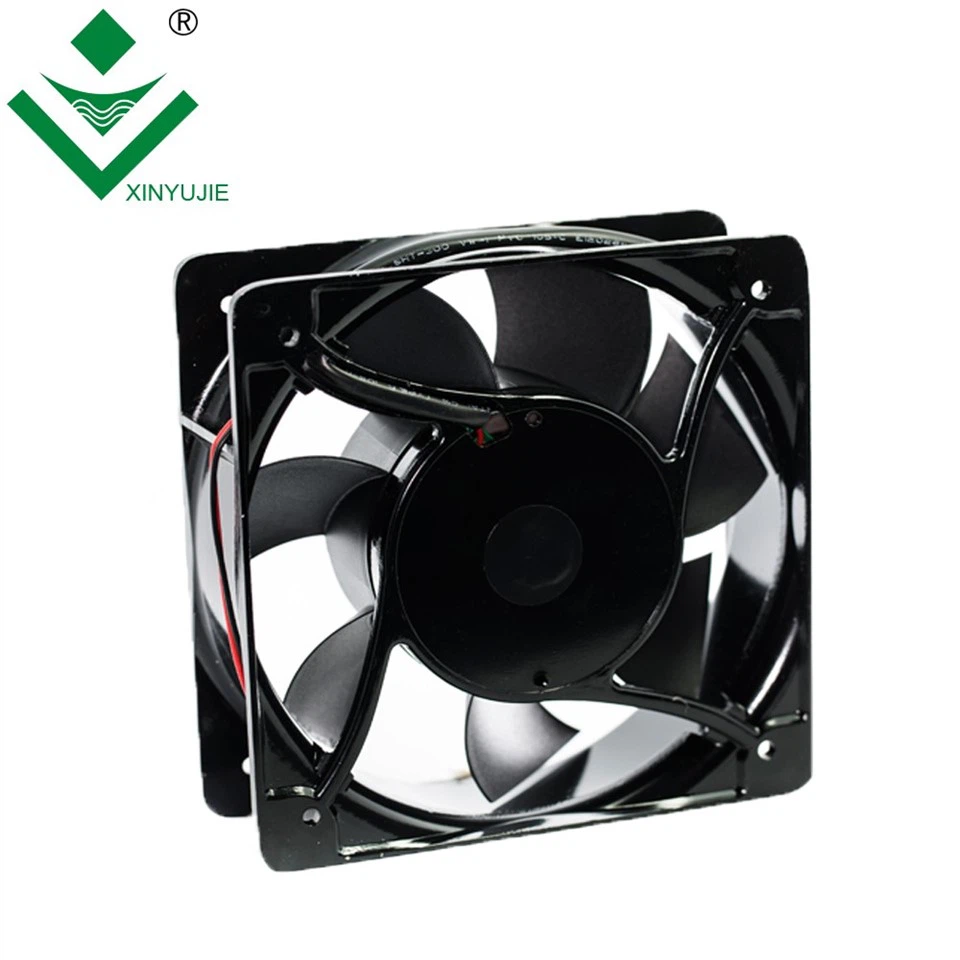

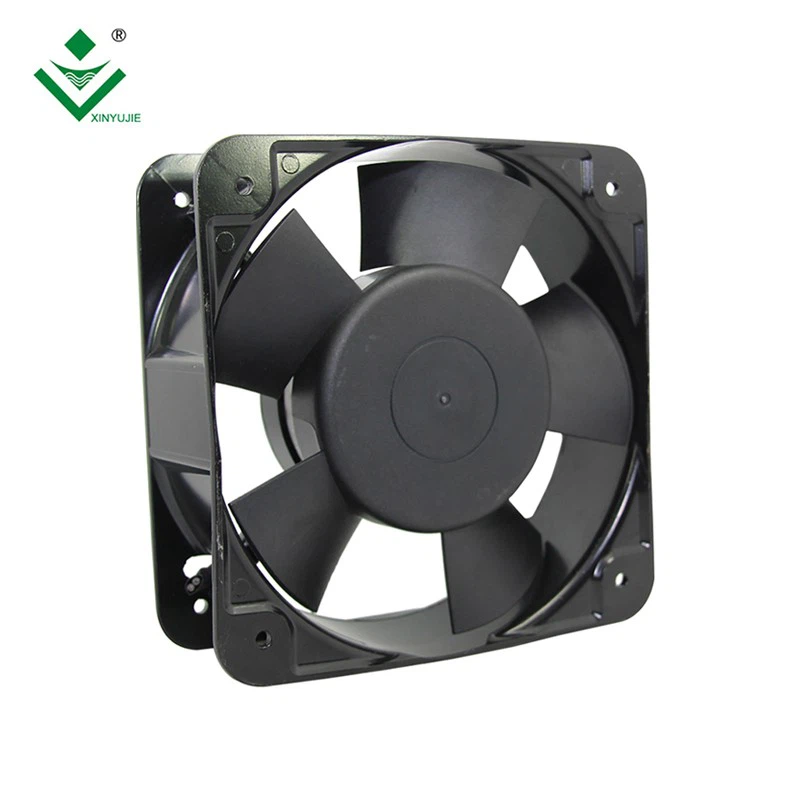

Fan picture

Fan drawing

product-750-575

Fan PQ Curve

product-750-613

Datasheet

Model	Bearing type		Rated voltage	Frequency	Rated current	Power	Rated speed	Air flow	Air pressure	Noise level	Weight
Model	Ball	Sleeve	VAC	Hz	A	W	RPM	CFM	mmH2O	dBA	g
BW15051MSL110/125A		√	110-125	50/60	0.50/0.45	34/32	2400/2600	195/230	16.0/20.3	50/55	900.00
BW15051MBL110/125A	√		110-125		0.50/0.45	34/32	2400/2600	195/230	16.0/20.3	50/55
BW15051MSL200/240A		√	200-240		0.23/0.21	34/32	2400/2600	195/230	16.0/20.3	50/55
BW15051MBL200/240A	√		200-240		0.23/0.21	34/32	2400/2600	195/230	16.0/20.3	50/55
BW15051HSL380A		√	380		0.15/0.14	36/34	2400/2600	195/230	16.0/20.3	50/55
BW15051HBL380A	√		380		0.15/0.14	36/34	2400/2600	195/230	16.0/20.3	50/55

OEM service

product-750-422

The fan in this picture is customized by us. In terms of shape, color and parameters, it is customized according to customer requirements. If you have special needs, please feel free to contact us for design and customization!

Our company profile

product-750-644

We have introduced fully automatic production equipment, and the production efficiency is very high. At the same time, our test is also a computer test, a good control of the defective rate, if you have order needs, please rest assured to our production!
