4cm mini cooling fan, 4015 5v brushless radiator silent dc fan, computer radiator cooling fan

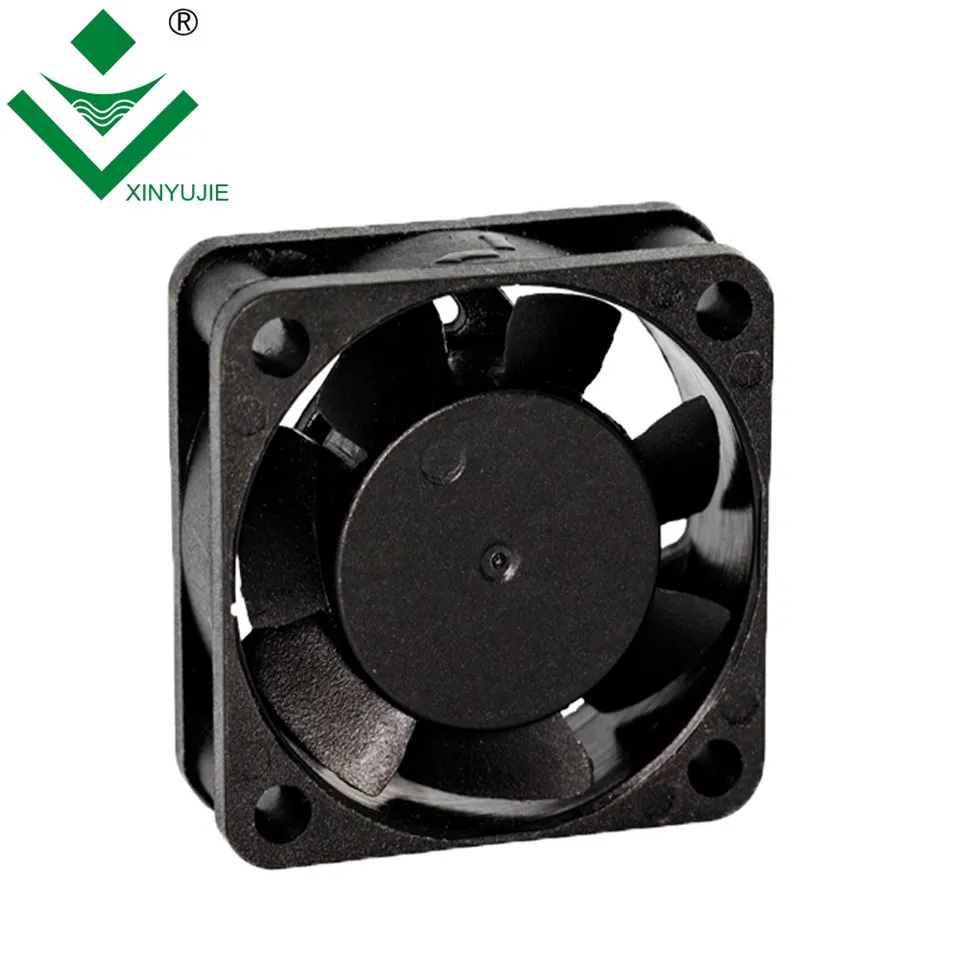

Fan picture
Specification datasheet
|
Size |
Model |
Rated Voltage |
Startup Voltage |
Current Amp (A) |
Speed |
Air flow |
Static Pressure |
Noise Level |
Weight |
|
40*40*15mm |
XYJ05B4015L |
5 |
3 |
0.06 |
4000 |
4.07 |
2.05 |
16.5 |
18.8 |
|
XYJ05B4015M |
5 |
3 |
0.16 |
7000 |
7.33 |
6.03 |
25.8 |
18.8 |
|
|
XYJ12B4015L |
12 |
6 |
0.03 |
4000 |
4.07 |
2.05 |
16.5 |
18.8 |
|
|
XYJ12B4015M |
12 |
6 |
0.08 |
7000 |
7.33 |
6.03 |
25.8 |
18.8 |
|
|
XYJ12B4015H |
12 |
6 |
0.15 |
10000 |
10.54 |
11.69 |
34.1 |
18.8 |
|
|
XYJ24B4015M |
24 |
12 |
0.04 |
7000 |
7.33 |
6.03 |
25.8 |
18.8 |
|
|
XYJ24B4015H |
24 |
12 |
0.08 |
10000 |
10.54 |
11.69 |
34.1 |
18.8 |
PQ curve
Fan drawing
Sleeve bearing & oil bearing & hydraulic bearing
The main differences between the three construction types of fans are as follows.
Lifespan: double ball bearing > hydraulic bearing > oil bearing;
Price: double ball bearing > hydraulic bearing > oil bearing
Noise: double ball bearing > hydraulic bearing = oil bearing.
Note: The above is a comparison of the same model with the same speed.Double ball fans can be used as ultra-high speed fans, while oil and hydraulic bearing fans can only be used as medium and low speed fans.
Lead time
|
Quantity(pieces) |
1-10000pieces |
>10000 |
|
Lead time |
20days |
To be negotiated |
Use Environment
|
Operating Voltage |
10.2V~13.8V / 20.4V~27.6V |
|
Operating Temperature / Humidity |
-10°C~70°C 35%~85% |
|
Stotage Temperature / Humidity |
-40°C~80°C 35%~85% |
Option Function
► Waterproof Level
IP55~IP67, fans could be work in wet environment, outdoor or under water with waterproof protection.
► Wire leading
2 wires(red wire:positive;black wire:negative)
3 wires(red :positive;black :negative;yellow: PWM/RD/FG/NO)
4 wires(red :positive;black :negative;Yellow :PWM;white:FG/NO)
► Additional function
Auto-restart, FG(speed detection), RD(stoppage alarm), PWM(speed control),waterproof etc.
► Default wire length
FAQ
Q: What kinds of products supplied by your factory?
Q: What's your MOQ and delivery date ?
Sample lead time:3-5 days
Mass production:20 days
Waterproof fans need 1 more week
Q: What's your payment terms ?
Full payment for sample orders ,30% prepayment and Balance before shipment.
Q: Packing & Shipping
Delivery by express, air, train, sea according to the quantity
Q: What information should be provided before place an order?
Rated voltage , such as 5v/12v/24v
Speed or current amp
Sleeve or ball bearing
Leading wire length(default 200mm)
2 wire leading or 3/4 wire leading
With terminal or not
